v9_kmers.RmdKmer statistics computation
Counting k-mer occurrences in immunarch is rather
straightforward. All you need to do is to run the
getKmers() function on your data:
kmers <- getKmers(immdata$data[[1]], 3)
kmers## # A tibble: 4,405 × 2
## Kmer Count
## <chr> <int>
## 1 AAA 6
## 2 AAD 5
## 3 AAE 9
## 4 AAF 2
## 5 AAG 37
## 6 AAI 2
## 7 AAK 5
## 8 AAL 4
## 9 AAM 1
## 10 AAN 13
## # ℹ 4,395 more rowsIt is also possible to compute occurrences of k-mers in a batch of immune repertoires. In order to do that, you just need to provide a list of immune repertoires to the function. NA means that there is no such kmer found in a sample, specified by the column name.
kmers <- getKmers(immdata$data, 5)
kmers## # A tibble: 172,926 × 13
## Kmer `A2-i129` `A2-i131` `A2-i133` `A2-i132` `A4-i191` `A4-i192` MS1 MS2
## <chr> <int> <int> <int> <int> <int> <int> <int> <int>
## 1 AAAAG NA NA NA NA NA NA NA 1
## 2 AAAAL NA NA NA NA NA NA NA NA
## 3 AAAAW NA NA NA NA NA 1 NA NA
## 4 AAADE NA NA NA NA NA NA NA NA
## 5 AAADN NA 1 NA NA NA NA NA NA
## 6 AAADT NA NA NA NA NA NA NA NA
## 7 AAAEA NA NA NA NA NA NA NA NA
## 8 AAAEN NA NA NA 1 NA NA NA NA
## 9 AAAET NA NA NA NA NA NA NA NA
## 10 AAAFE NA NA NA 1 NA NA NA NA
## # ℹ 172,916 more rows
## # ℹ 4 more variables: MS3 <int>, MS4 <int>, MS5 <int>, MS6 <int>Note that by default getKmers() filter out all
non-coding sequences before counting the k-mer statistics. You can use
both coding and non-coding sequences by setting the .coding
argument to FALSE:
kmers <- getKmers(immdata$data[[1]], 3, .coding = F)
kmers## # A tibble: 4,645 × 2
## Kmer Count
## <chr> <int>
## 1 **G 1
## 2 *~G 4
## 3 *~L 1
## 4 *AA 1
## 5 *D~ 1
## 6 *EE 1
## 7 *G~ 1
## 8 *GG 1
## 9 *GP 1
## 10 *HL 1
## # ℹ 4,635 more rowsKmer statistics visualisation

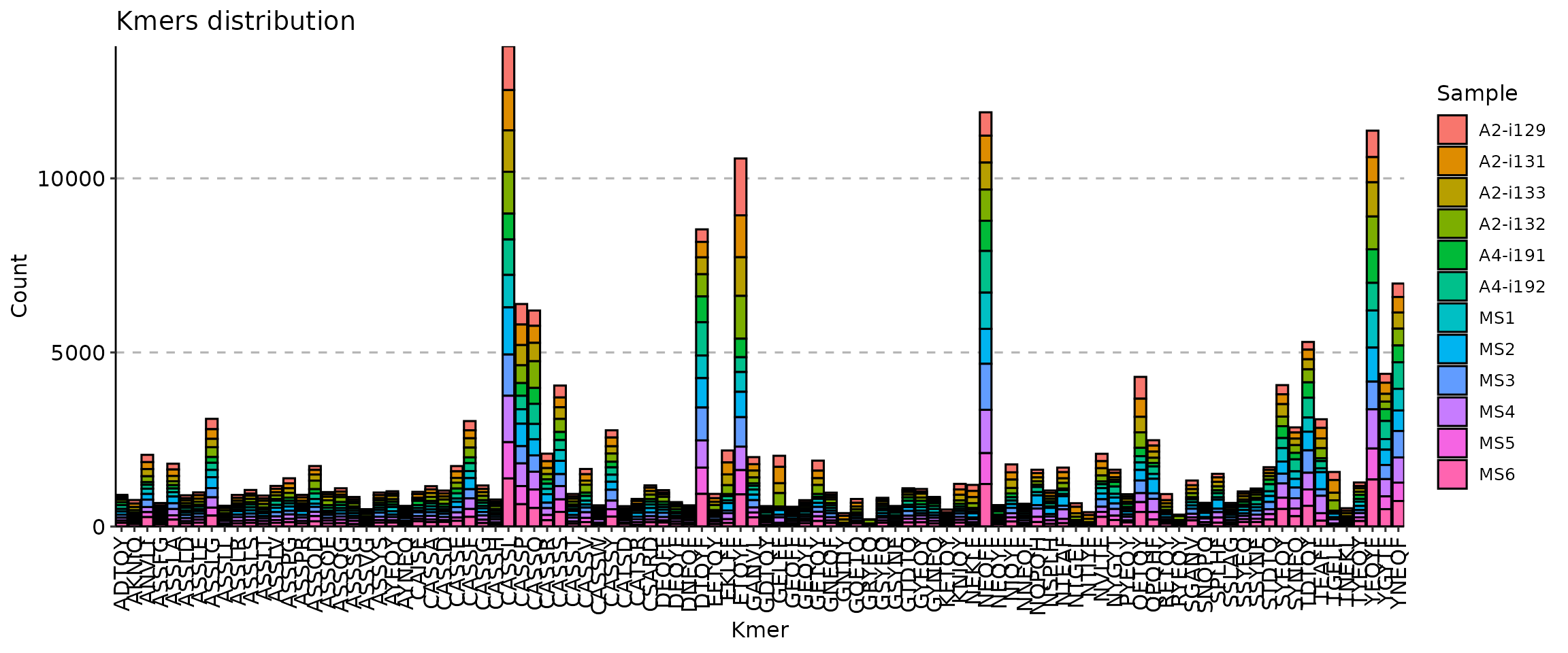

To visualise your k-mer statistics, the vis() function
comes to help:
## Warning: The `size` argument of `element_line()` is deprecated as of ggplot2 3.4.0.
## ℹ Please use the `linewidth` argument instead.
## ℹ The deprecated feature was likely used in the immunarch package.
## Please report the issue at <https://github.com/immunomind/immunarch/issues>.
## This warning is displayed once every 8 hours.
## Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
## generated.## Warning: The `size` argument of `element_rect()` is deprecated as of ggplot2 3.4.0.
## ℹ Please use the `linewidth` argument instead.
## ℹ The deprecated feature was likely used in the immunarch package.
## Please report the issue at <https://github.com/immunomind/immunarch/issues>.
## This warning is displayed once every 8 hours.
## Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
## generated.
The vis() function for k-mers has a number of arguments
to manipulate the plot. First, the .head argument specifies
the number of the most abundant k-mers to visualise.

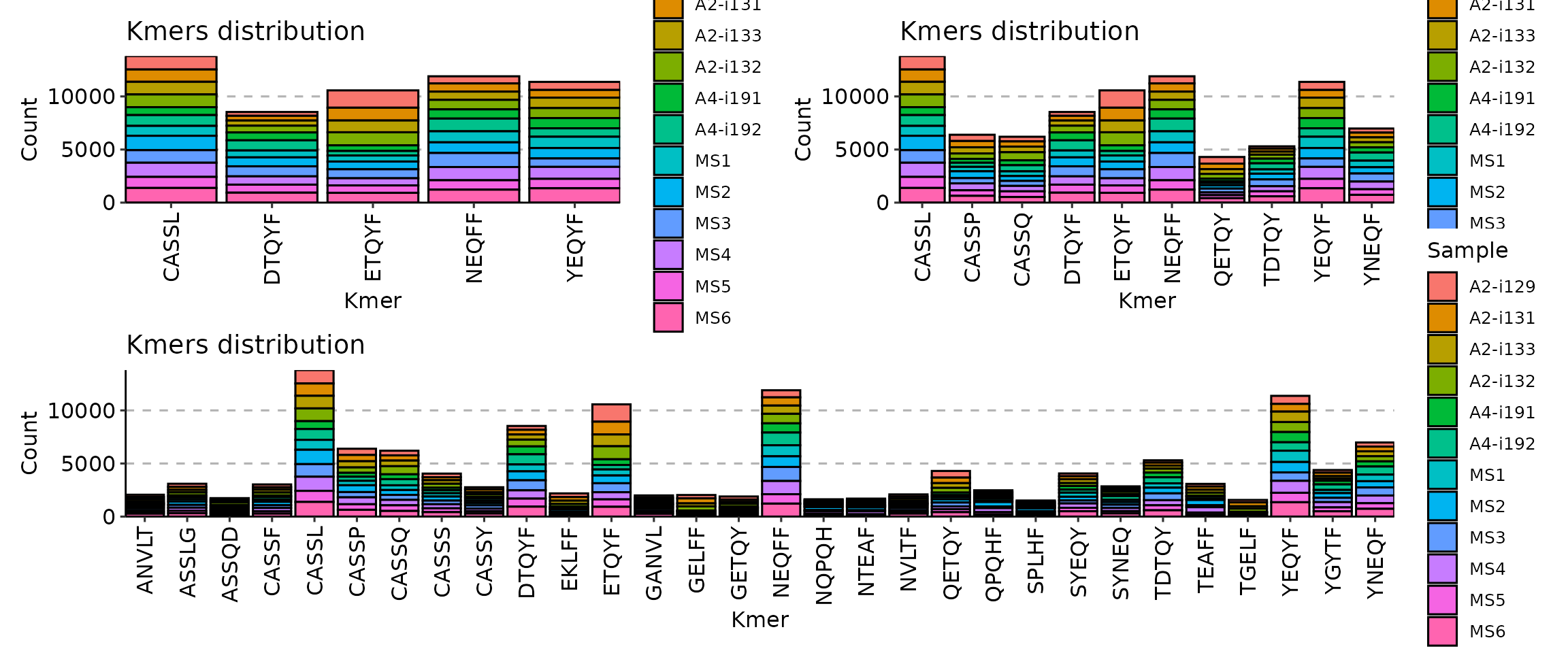

p1 <- vis(kmers, .head = 5)
p2 <- vis(kmers, .head = 10)
p3 <- vis(kmers, .head = 30)
(p1 + p2) / p3
Second, there are three options to choose from for positions of bars:
“stack”, “dodge” and “fill”, adjusted by providing the correposnding
option to the .position argument:

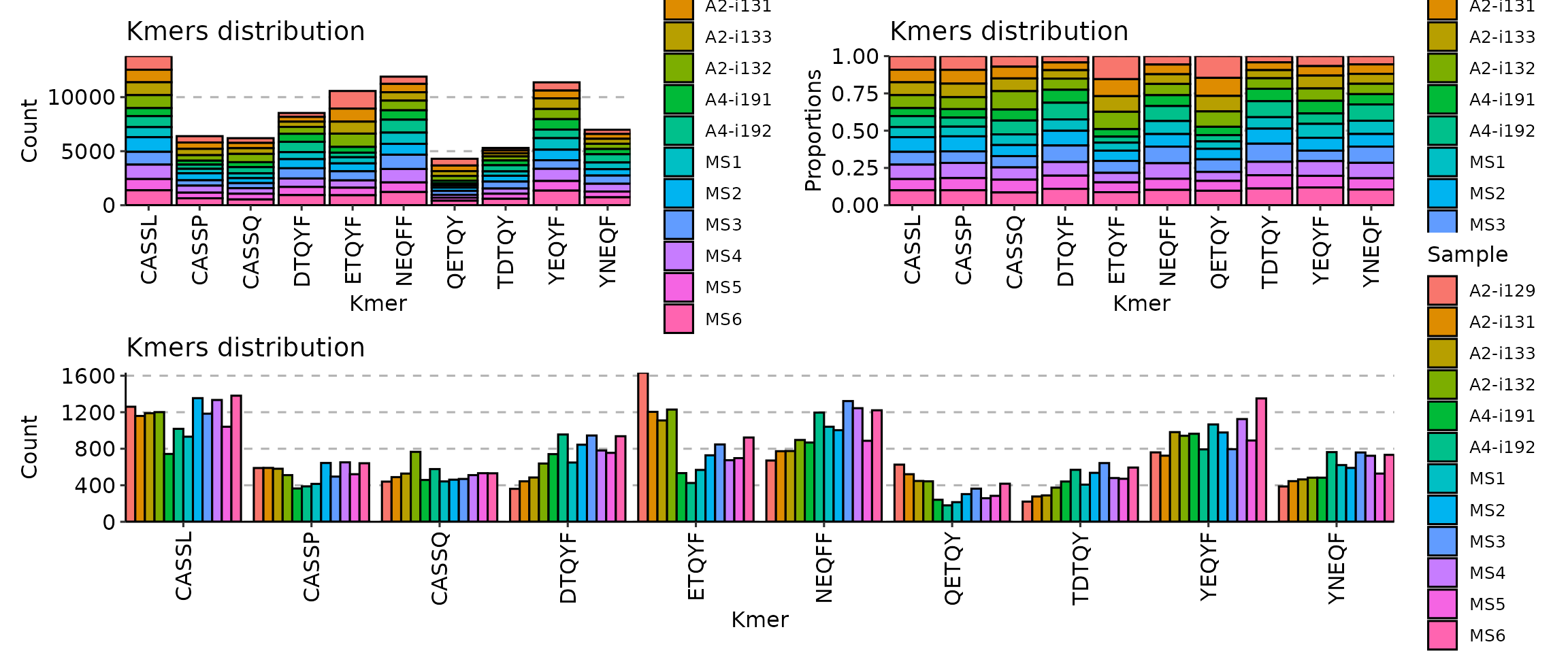

p1 <- vis(kmers, .head = 10, .position = "stack")
p2 <- vis(kmers, .head = 10, .position = "fill")
p3 <- vis(kmers, .head = 10, .position = "dodge")
(p1 + p2) / p3
Option “stack” stacks all the bars on top of each other so you can see the full distribution of k-mers. Option “fill” stack all bars on top of each other as well, but normalises it in such a way that you can see distribution of counts per k-mer, i.e., you can clearly see which repertoire has more k-mer counts than others for a specific k-mer. Option “dodge” groups k-mer bars of different samples so that you can clearly see which samples has more k-mer occurrences overall.
Additional argument is .log needed if your distribution
of k-mer counts is vastly imbalanced for some of repertoires. It permits
to use the log-transformation of y-axis so you can see differences in
orders of magnitude in k-mer counts.

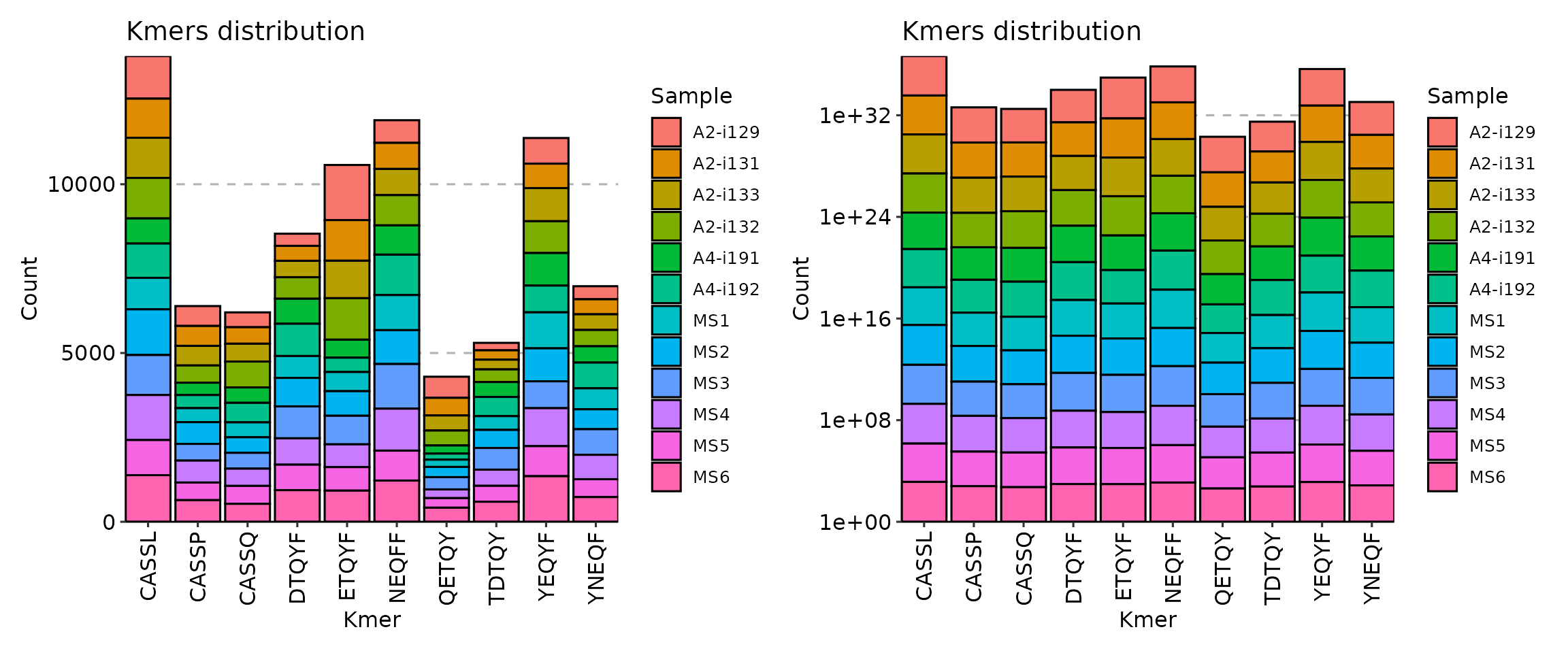

p1 <- vis(kmers, .head = 10, .position = "stack")
p2 <- vis(kmers, .head = 10, .position = "stack", .log = T)
p1 + p2
Sequence motifs analysis
immunarch utilises common approaches to sequence motif
analysis and uses different types of matrices to represent sequence
motifs:
- position frequency matrix (PFM) - a matrix with occurences of each amino acid in each position;
- position probability matrix (PPM) - a matrix with probabilities of occurences of each amino acid in each position;
- position weight matrix (PWM) - a matrix with log likelihoods of PPM elements;
- a matrix with self-information of elements in PWM.
To compute and visualise sequence motifs, first you need to compute
k-mer statistics for one of the input immune repertoires, and then apply
the kmer_profile() function to compute sequence motif
matrices:
kmers <- getKmers(immdata$data[[1]], 5)
kmer_profile(kmers)## [,1] [,2] [,3] [,4] [,5]
## A 8955 8976 3791 3246 3159
## C 6469 26 27 18 10
## D 2129 2131 2131 2130 2085
## E 3315 5868 5872 5870 5720
## F 688 691 691 2600 9029
## G 9194 9603 9603 9566 9326
## H 405 405 405 680 659
## I 750 1020 1107 896 852
## K 721 1099 1100 1100 1044
## L 3073 3078 4108 4097 4033
## M 241 245 246 246 226
## N 2421 2423 2424 2419 2355
## P 2285 2564 2564 2559 2509
## Q 2459 2466 7087 7086 7051
## R 3487 3502 3504 3496 2917
## S 14021 14029 13082 8128 3462
## T 3408 5669 5671 6024 5797
## V 1703 1927 1927 1561 1508
## W 485 486 487 450 439
## Y 2060 2061 2442 6097 6088
## attr(,"class")
## [1] "immunr_kmer_profile_pfm" "matrix"
## [3] "array"Currently we do not support sequence motifs analysis for more than
one sample, but we are working on including it into our following
release. In order to compute and visualise sequence motif matrices for
all of your samples you need to process them one by one, which can be
easily done in for-loops or via the lapply() function.
Argument .method specifies which matrix to compute:
-
.method = "freq"- position frequency matrix (PFM); -
.method = "prob"- position probability matrix (PPM); -
.method = "wei"- position weight matrix (PWM); -
.method = "self"- self-information matrix.
kmer_profile(kmers, "freq")## [,1] [,2] [,3] [,4] [,5]
## A 8955 8976 3791 3246 3159
## C 6469 26 27 18 10
## D 2129 2131 2131 2130 2085
## E 3315 5868 5872 5870 5720
## F 688 691 691 2600 9029
## G 9194 9603 9603 9566 9326
## H 405 405 405 680 659
## I 750 1020 1107 896 852
## K 721 1099 1100 1100 1044
## L 3073 3078 4108 4097 4033
## M 241 245 246 246 226
## N 2421 2423 2424 2419 2355
## P 2285 2564 2564 2559 2509
## Q 2459 2466 7087 7086 7051
## R 3487 3502 3504 3496 2917
## S 14021 14029 13082 8128 3462
## T 3408 5669 5671 6024 5797
## V 1703 1927 1927 1561 1508
## W 485 486 487 450 439
## Y 2060 2061 2442 6097 6088
## attr(,"class")
## [1] "immunr_kmer_profile_pfm" "matrix"
## [3] "array"
kmer_profile(kmers, "prob")## [,1] [,2] [,3] [,4] [,5]
## A 0.131172274 0.1314798811 0.0555303286 0.0475472030 0.0462728325
## C 0.094757503 0.0003808464 0.0003954943 0.0002636629 0.0001464794
## D 0.031185458 0.0312147534 0.0312147534 0.0312001055 0.0305409483
## E 0.048557911 0.0859540934 0.0860126851 0.0859833892 0.0837861987
## F 0.010077781 0.0101217244 0.0101217244 0.0380846358 0.1322562217
## G 0.134673131 0.1406641375 0.1406641375 0.1401221638 0.1366066590
## H 0.005932414 0.0059324144 0.0059324144 0.0099605970 0.0096529904
## I 0.010985953 0.0149408956 0.0162152661 0.0131245514 0.0124800422
## K 0.010561162 0.0160980826 0.0161127305 0.0161127305 0.0152924461
## L 0.045013110 0.0450863496 0.0601737245 0.0600125972 0.0590751293
## M 0.003530153 0.0035887445 0.0036033925 0.0036033925 0.0033104337
## N 0.035462655 0.0354919510 0.0355065989 0.0354333592 0.0344958913
## P 0.033470536 0.0375573101 0.0375573101 0.0374840704 0.0367516735
## Q 0.036019277 0.0361218122 0.1038099284 0.1037952804 0.1032826026
## R 0.051077356 0.0512970748 0.0513263707 0.0512091872 0.0427280318
## S 0.205378722 0.2054959059 0.1916243097 0.1190584306 0.0507111573
## T 0.049920169 0.0830391539 0.0830684498 0.0882391715 0.0849140899
## V 0.024945436 0.0282265743 0.0282265743 0.0228654294 0.0220890888
## W 0.007104249 0.0071188973 0.0071335452 0.0065915716 0.0064304443
## Y 0.030174750 0.0301893978 0.0357702618 0.0893084709 0.0891766395
## attr(,"class")
## [1] "immunr_kmer_profile_ppm" "matrix"
## [3] "array"
kmer_profile(kmers, "wei")## [,1] [,2] [,3] [,4] [,5]
## A 8.806550 8.8099289 7.5664346 7.3425192 7.303324
## C 8.337399 0.3785116 0.4329594 -0.1520031 -1.000000
## D 6.734032 6.7353868 6.7353868 6.7347096 6.703904
## E 7.372865 8.1967251 8.1977082 8.1972167 8.159871
## F 5.104337 5.1106138 5.1106138 7.0223678 8.818422
## G 8.844549 8.9073414 8.9073414 8.9017720 8.865115
## H 4.339850 4.3398500 4.3398500 5.0874628 5.042207
## I 5.228819 5.6724253 5.7905114 5.4854268 5.412782
## K 5.171927 5.7800476 5.7813597 5.7813597 5.705978
## L 7.263504 7.2658494 7.6822924 7.6784241 7.655710
## M 3.590961 3.6147098 3.6205864 3.6205864 3.498251
## N 6.919459 6.9206506 6.9212459 6.9182670 6.879583
## P 6.836050 7.0022525 7.0022525 6.9994363 6.970969
## Q 6.941928 6.9460290 8.4690312 8.4688277 8.461684
## R 7.445843 7.4520353 7.4528590 7.4495614 7.188342
## S 9.453374 9.4541965 9.3533674 8.6667566 7.435462
## T 7.412782 8.1469505 8.1474593 8.2345780 8.179163
## V 6.411935 6.5902128 6.5902128 6.2863267 6.236493
## W 4.599913 4.6028844 4.6058499 4.4918531 4.456149
## Y 6.686501 6.6872007 6.9319194 8.2519557 8.249825
## attr(,"class")
## [1] "immunr_kmer_profile_pwm" "matrix"
## [3] "array"
kmer_profile(kmers, "self")## [,1] [,2] [,3] [,4] [,5]
## A 0.38439580 0.384852924 0.231593692 0.208945980 0.20515943
## C 0.32213912 0.004325845 0.004470689 0.003134693 0.00186571
## D 0.15602031 0.156124588 0.156124588 0.156072452 0.15371599
## E 0.21191400 0.304302404 0.304425277 0.304363847 0.29971526
## F 0.06684268 0.067070605 0.067070605 0.179555617 0.38600202
## G 0.38953746 0.398033587 0.398033587 0.397280373 0.39232070
## H 0.04388305 0.043883048 0.043883048 0.066233509 0.06462492
## I 0.07149874 0.090610399 0.096424136 0.082049289 0.07892670
## K 0.06933496 0.095895752 0.095961867 0.095961867 0.09222931
## L 0.20136664 0.201588530 0.243987757 0.243566576 0.24110364
## M 0.02875681 0.029148878 0.029246677 0.029246677 0.02727388
## N 0.17084331 0.170942166 0.170991579 0.170744427 0.16756143
## P 0.16403791 0.177824941 0.177824941 0.177583728 0.17516018
## Q 0.17271556 0.173059094 0.339249150 0.339222412 0.33828469
## R 0.21918174 0.219806921 0.219890176 0.219557010 0.19435586
## S 0.46901135 0.469109844 0.456764807 0.365540136 0.21813673
## T 0.21586646 0.298115914 0.298178816 0.309052134 0.30211178
## V 0.13283645 0.145276593 0.145276593 0.124632326 0.12150152
## W 0.05070375 0.050787142 0.050870488 0.047757003 0.04681920
## Y 0.15239801 0.152450850 0.171879524 0.311245305 0.31097592
## attr(,"class")
## [1] "immunr_kmer_profile_self" "matrix"
## [3] "array"Sequence motif visualisation
Visualisation of sequence motif matrices is done by
vis(). There are two types of plots to choose from -
sequence logo and “text logo”. The argument .plot regulates
the type of plot: .plot = "seq" for sequence logo plots and
.plot = "text" (by default) for “text logo” plots.

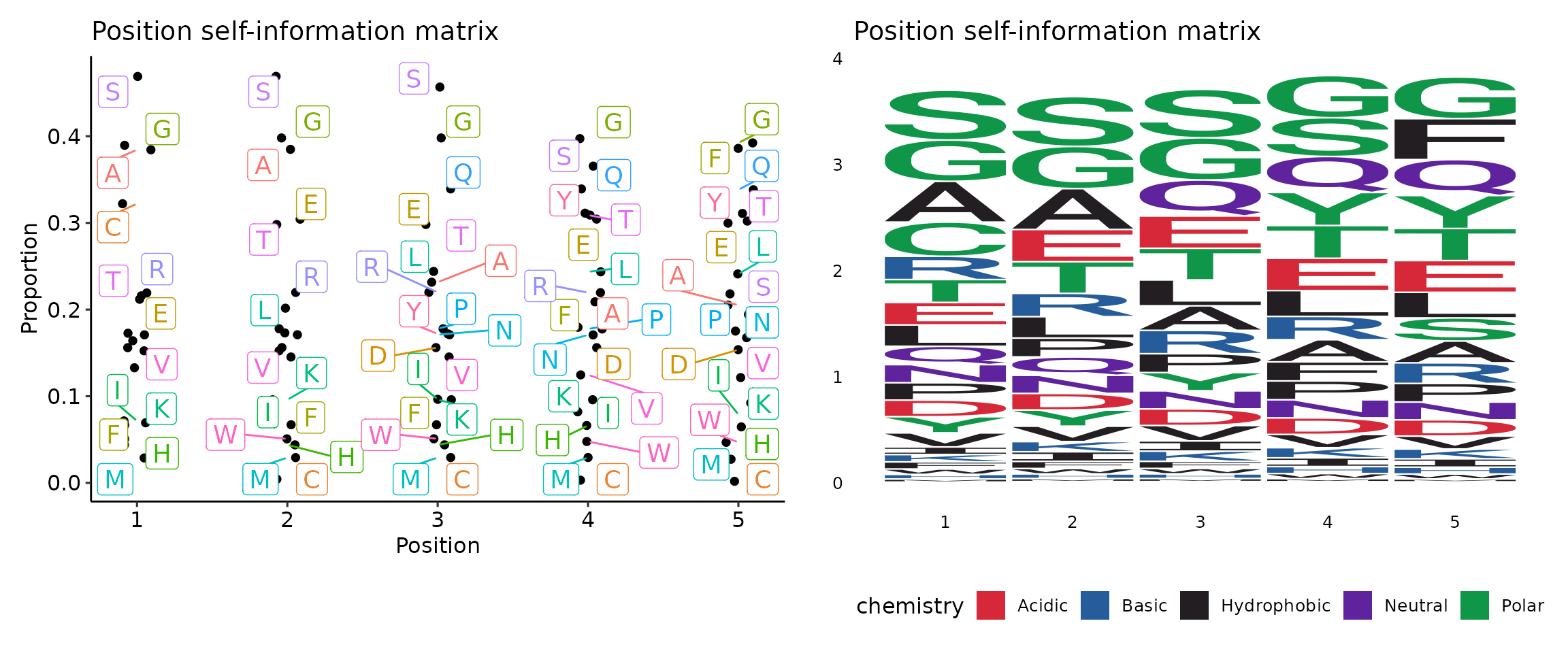

kp <- kmer_profile(kmers, "self")
p1 <- vis(kp)
p2 <- vis(kp, .plot = "seq")## Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
## ℹ Please use tidy evaluation idioms with `aes()`.
## ℹ See also `vignette("ggplot2-in-packages")` for more information.
## ℹ The deprecated feature was likely used in the ggseqlogo package.
## Please report the issue at <https://github.com/omarwagih/ggseqlogo/issues>.
## This warning is displayed once every 8 hours.
## Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
## generated.
p1 + p2## Warning: ggrepel: 13 unlabeled data points (too many overlaps). Consider
## increasing max.overlaps
Get in contact with us
Cannot find an important feature? Have a question or found a bug? Contact us at support@immunomind.io
